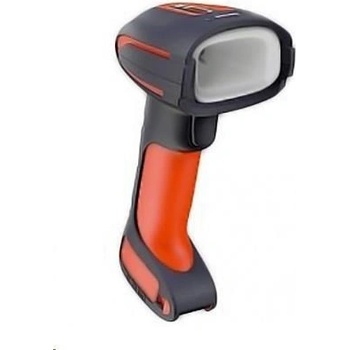

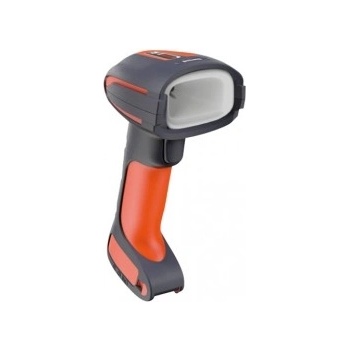

Honeywell Granit 1920i

Industrial Direct Part Mark (DPM) Area-Imaging Scanner

MECHANICAL

• Dimensions (L x W x H): 134 mm x 74.5 mm x 193 mm (5.27 in x 2.93 in x 7.6 in)
• Weight: 312 g (11 oz)

ELECTRICAL

• Input Voltage: DC 4.0V - DC 5.5V
• Operating Power: 2.35 W (470 mA @ 5V DC)
• Standby Power: 0.5 W (100 mA @ 5V DC)
• Hosť System Interfaces: USB, RS-232, Keyboard Wedge

ENVIRONMENTAL

• Operating Temperature: -30 °C až 50 °C (-22 °F až 122 °F)
• Storage Temperature: od -40 do 70 °C (-40 do 158 °F)
• Humidity: Up to 95% relatívnej humidity, non-condensing
• Drop: Designed to withstand 50 2 m (6.5 ft) drops to concrete pri -30°C (-22°F)
• Tumble: 5,000 1 m (3.3 ft) tumbles
• Environmental Sealing: IP65
• Light Levels: 0 až 100,000 lux
• ESD: ±20 kV air discharge; ±8 kV contact discharge

SCAN PERFORMANCE

• Scan Pattern: Area Imager
• Scan Angle: Horizontál: 41.4°; Vertical: 32.2°
• Symbol Contrast: 25% minimum reflectance difference
• Min. Resolution: 1D 2.5 míľ; 2D 4 míľ
• Pitch, Skew: 1D: ±45°, ±65°; 2D: ±45°, ±45°
• Reading Indicators: LED, Beeper and Vibrator
• Decode Capability: Reads štandard 1D, stacked, 2D and postal symbologies
• Warranty: 3-year factory warranty
